Open RegionYearModelModelCode Details
Europe 2009 AVENSIS ADT270R-AEFEYW
Catalog: TOYOTA202608 Engine: 2000CC DIESEL TURBO Transmission Description: MANUAL TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Body Description: SEDAN Steering Description: RIGHT-HAND DRIVE VEHICLES Color Code: 1G6 Trim Code: FA20 Production: 200811-201111 Model Short: ADT270R-AEFEYW Region: EU Native Region: EU

Toyota Avensis 2009 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
90987-W2001 RELAY, IGNITION, NO.1 1
Note:1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# Production:2008-11 – 2011-11
28300-28010 RELAY ASSY, STARTER 1
Note:1ADFTV..ADT270..RHD;1ADFTV,3ZRFE..ADT270,ZRT272..LHD..(E,N);2AD#,1ZRFAE,2ZRFAE,3ZRFAE..ADT271,ZRT27# Production:2008-11 – 2011-11 Replacements:28300-21020 (fitment: unknown)
90080-87019 RELAY, REAR FOG LAMP 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90080-87021 (fitment: unknown)
90080-87019 RELAY, ACC 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90080-87021 (fitment: unknown)
90080-87019 RELAY, FOG LAMP 1
Note:ZRT271..WG..6F..E;ZRT270,271..SED..E;ADT270..RHD..(E,F);ZRT271..LHD..WG..CVT..E;ADT271,ZRT272..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) Production:2009-05 – 2011-11 Replacements:90080-87021 (fitment: unknown) Spec:FRONT FOG LAMP-WITH
90982-08294 FUSIBLE LINK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:40A,FEMALE,GRN,58V
90982-08295 FUSIBLE LINK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:30A,FEMALE,PNK,58V
90080-82050 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09020 (fitment: unknown) Spec:7.5A,MINI FUSE,BROWN,ENGINE ROOM R/B
90080-82051 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09021 (fitment: unknown) Spec:10A,MINI FUSE,RED,ENGINE ROOM R/B
90080-82052 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09022 (fitment: unknown) Spec:15A,MINI FUSE,BLUE,ENGINE ROOM R/B
90080-82053 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09023 (fitment: unknown) Spec:20A,MINI FUSE,YELLOW,ENGINE ROOM R/B
90080-82054 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09025 (fitment: unknown) Spec:30A,MINI FUSE,GREEN,ENGINE ROOM R/B
90080-82055 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90982-09024 (fitment: unknown) Spec:25A,MINI FUSE,ENGINE ROOM R/B
90982-09020 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:7.5A,MINI FUSE,BROWN,INSTRUMENT PANEL J/B
90982-09021 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:10A,MINI FUSE,RED,INSTRUMENT PANEL J/B
90982-09022 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:15A,MINI FUSE,BLUE,INSTRUMENT PANEL J/B
90982-09023 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:20A,MINI FUSE,YELLOW,INSTRUMENT PANEL J/B
90982-09024 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:25A,MINI FUSE,INSTRUMENT PANEL J/B
90982-09025 FUSE, FUSE BLOCK 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Spec:30A,MINI FUSE,GRN,INSTRUMENT PANEL J/B
82730-05460 BLOCK ASSY, INSTRUMENT PANEL JUNCTION 1
Note:ADT27#,ZRT27#..RHD..SED..6F..(E,F,G,V)..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11 Replacements:82730-05461 (fitment: unknown)
82673-12210 BRACKET, JUNCTION BLOCK, NO.2 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
82673-12200 BRACKET, JUNCTION BLOCK, NO.1 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
82673-12230 BRACKET, JUNCTION BLOCK 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
82755-12020 BLOCK ASSY, RELAY 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
82755-12010 BLOCK ASSY, RELAY 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
81980-0D040 FLASHER ASSY, TURN SIGNAL 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
89650-05070 COMPUTER ASSY, POWER STEERING 1
Note:ADT27#,ZRT27#..RHD..SED Production:2008-11 – 2011-02
84340-69075 SWITCH ASSY, STOP LAMP 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
84345-51010 ADJUSTER, STOP LAMP SWITCH MOUNTING 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
69065-05010 CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH 1
Note:ADT27#,ZRT27# Production:2008-11 – 2010-06 Replacements:69065-05030 (fitment: unknown)
89690-05040 COMPUTER, POWER MANAGEMENT CONTROL 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
85940-05060 RELAY ASSY, WINDSHIELD WIPER 1
Note:ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) Production:2009-05 – 2011-11 Spec:LIGHT CONTROL SYSTEM-WITH(AUTO)
85970-20020 RELAY ASSY, DOUBLE LOCK DOOR CONTROL 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
— Part does not apply to this vehicle configuration. 88150A —
— Part does not apply to this vehicle configuration. 89815 —
— Part does not apply to this vehicle configuration. 85903 —
— Part does not apply to this vehicle configuration. 89940 —
— Part does not apply to this vehicle configuration. 89227 —
82861-05010 BRACKET, COMPUTER INTEGRATION, NO.1 1
Note:ADT27#,ZRT27#..RHD..(DCR,DCRL,HTWVM) Production:2008-11 – 2011-11
90080-87019 RELAY, POWER OUTLET SOCKET 1
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 Replacements:90080-87021 (fitment: unknown)
84520-42010 SWITCH ASSY, CLUTCH START 1
Note:ADT270..RHD;ADT271,ZRT27#..6F..(DCR,DCRL,HTWVM);ADT270,ZRT272..LHD..6F..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
82821-52020 COVER, CONNECTOR 1
Note:ZRT272..6F..G;ZRT271..LHD..N;ZRT272..E..HTWVM;ADT271..RHD..6FC;ADT270..RHD..(E,F);ADT271,ZRT270,271..(CVT,MTM)..(E,G,V);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11
895A0-30010 RELAY ASSY, STOP LAMP CONTROL 1
Note:ADT270..RHD;ADT270..LHD..(E,N);ADT271,ZRT27#..DCR,DCRL,HTWVM Production:2008-11 – 2011-11
— Part does not apply to this vehicle configuration. 82642G —
90179-06110 standard —
91631-B0618 standard —
90159-W0007 standard —
Replacements:90159-60431 (fitment: unknown)
90119-W0030 standard —
Replacements:91671-80616 (fitment: unknown)
90178-W0019 standard —
Replacements:94151-80600 (fitment: unknown)
90119-W0156 standard —
Replacements:90119-06952 (fitment: unknown)
90178-W0031 standard —
Replacements:94151-80800 (fitment: unknown)
94120-41000 standard —
90159-W0019 standard —
Replacements:90159-60546 (fitment: unknown)
90159-70004 standard —

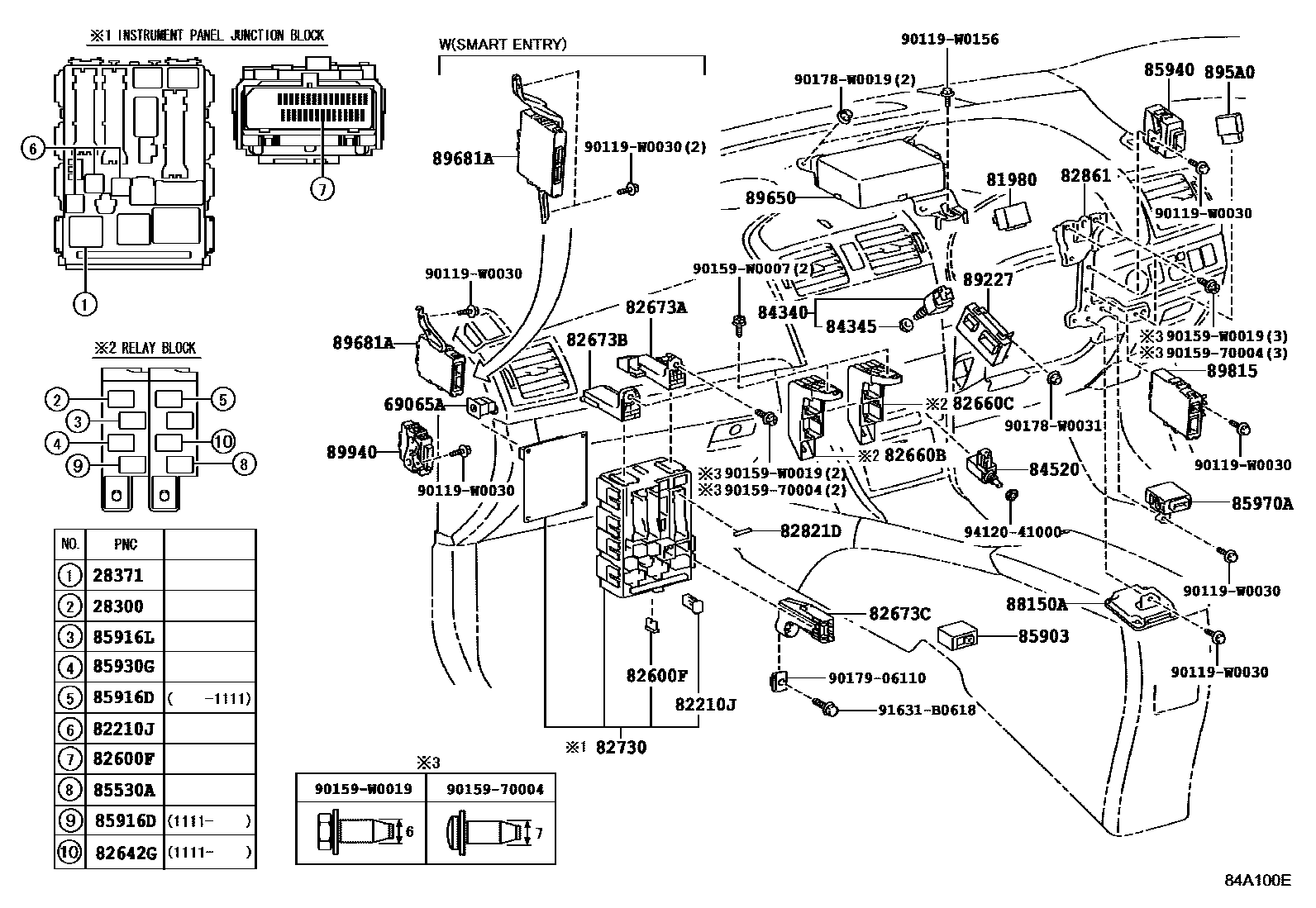

Diagram

48 parts
Toyota Avensis 2009 — Switch & Relay & Computer
