Toyota Avensis 2009 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84250-05040 | SWITCH ASSY, STEERING PAD | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..(E,N)..(DCR,HTWVM);ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| — | Part does not apply to this vehicle configuration. | 84610F | — |
| — | Part does not apply to this vehicle configuration. | 84113A | — |
| — | Part does not apply to this vehicle configuration. | 84113B | — |
| 84307-05030 | CABLE SUB-ASSY, SPIRAL W/SENSOR | 1 | |
Note:ZRT271;ADT270..RHD;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC);ADT271,ZRT270,272..(E,G,V)..(DCR,DCRL,HTWVM) Production:2009-07 – 2011-11 | |||
| 84652-05180 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:ADT27#,ZRT27#..SED..(E,F) Production:2009-05 – 2011-11 Spec:LIGHT CONTROL SYSTEM-WITH(AUTO) | |||
| 84652-05200 | SWITCH ASSY, WINDSHIELD WIPER (W/RELAY, WIPER CONTROL) | 1 | |
Note:ADT27#,ZRT27#..SED..(E,F) Production:2009-05 – 2011-11 | |||
| — | Part does not apply to this vehicle configuration. | 89235A | — |
| 84140-05190 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:ADT270..RHD..(E,F);ADT271,ZRT27#..E..(DCR,HTWVM);ADT270,ZRT272..LHD..E..(DCR,HTWC) Production:2009-05 – 2011-11 Spec:FRONT FOG LAMP-WITH&LIGHT CONTROL SYSTEM-WITH(AUTO) | |||
| 84450-12200 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| 84052-71010 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:ADT270..RHD;ADT271,ZRT27#..DCR,DCRL,HTWVM;ADT270,ZRT272..LHD..(E,N)..(DCR,HTWC) Production:2008-11 – 2011-11 | |||
| — | Part does not apply to this vehicle configuration. | 85432 | — |
| — | Part does not apply to this vehicle configuration. | 82291D | — |
| — | Part does not apply to this vehicle configuration. | 84523 | — |
| — | Part does not apply to this vehicle configuration. | 84306 | — |
| 93319-14012 | standard | — | |
| 90159-50265 | standard | — | |
| 90159-50199 | standard | — | |

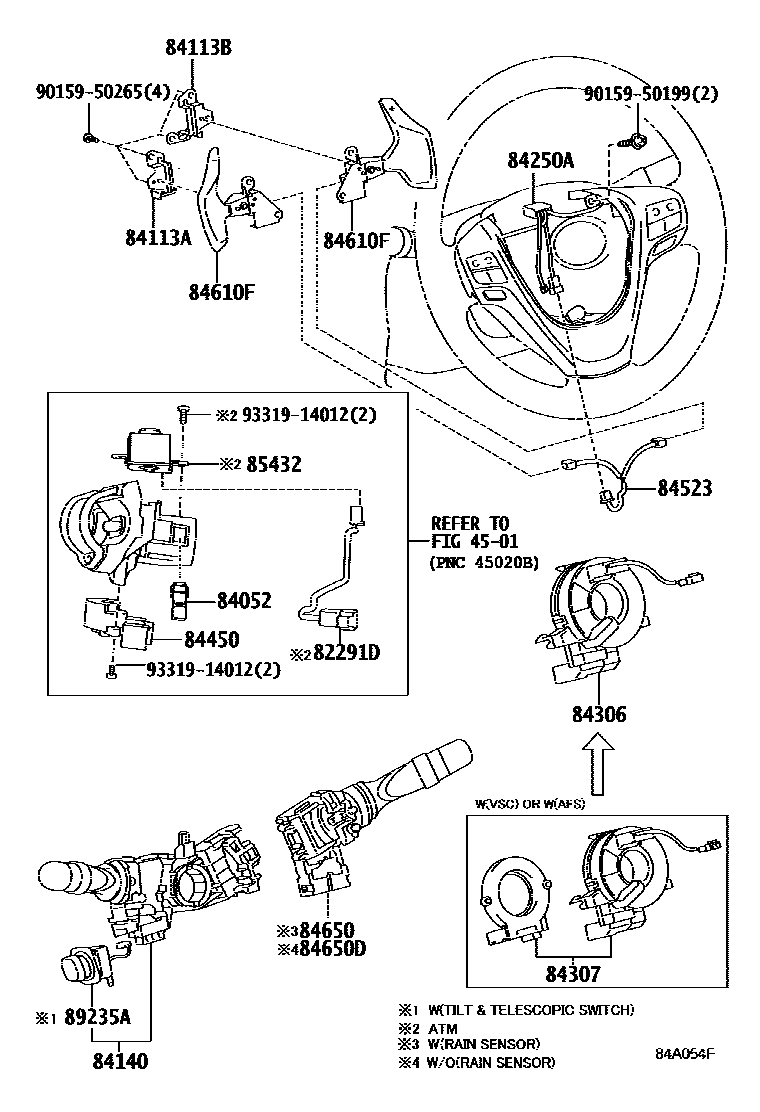

Diagram
10 parts
