Toyota YARIS-FRP 2022 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 82730-52S90 | BOX ASSY, POWER DISTRIBUTION | 1 | |
Note:MXPA11..6F..N;MXPA11..LHD..CVT..N Production:2022-06 – 2024-01 | |||
| 84550-16060 | SWITCH ASSY, PARKING BRAKE | 1 | |
Note:MXPA11..6F..N;MXPA11..LHD..CVT..N Production:2020-07 – 2024-01 | |||
| 89121-F4010 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Replacements:89121-30020 (fitment: unknown) | |||
| 82877-K0010 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:MXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V) Production:2020-07 – 2024-01 | |||
| 69065-02010 | CYLINDER SUB-ASSY, AIRBAG CUT OFF SWITCH | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Replacements:69065-12460 (fitment: unknown) | |||
| 89111-60140 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2021-06 – 2024-01 Spec:*614 Spec Note:*614(IT IS NECESSARY TO CONNECT TO THE TOYOTA SEVER. REFER TO THE REPAIR MANUAL FOR DETAILS.) | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:30A,FEMALE,PNK,32V | |||
| 90982-08311 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:40A,FEMALE,GRN,58VDC | |||
| 90982-09019 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:5A,MINI FUSE,TAN | |||
| 90982-09020 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:7.5A,MINI FUSE,BROWN | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:10A,MINI FUSE,RED | |||
| 90982-09022 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:15A,MINI FUSE,BLUE | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:25A,MINI FUSE | |||
| 90982-09025 | INSTRUMENT PANEL FUSE | 1 | |
Note:KSP211,MXPA11,MXPH11 Production:2020-07 – … Spec:30A,MINI FUSE,GRN | |||
| 82673-52190 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:MXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V) Production:2020-07 – 2024-01 | |||
| 82672-K0010 | COVER, POWER DISTRIBUTION BOX | 1 | |
Note:MXPA11..6F..N;MXPH11..LHD..V;MXPH11..RHD..(N,V);MXPA11..LHD..CVT..N Production:2020-07 – 2024-01 | |||
| 89220-0DD90 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:MXPH11..N..CZEP;MXPA11..LHD..CVT..N;MXPH11..LHD..(N,R)..FRP Production:2020-07 – 2024-01 Spec:ISRAEL SPEC | |||
| 82715-K0490 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:MXPA11..LHD..N Production:2020-07 – 2024-01 | |||
| 82673-52200 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:MXPA11..LHD..N;MXPH11..RHD..V;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V) Production:2020-07 – 2024-01 | |||
| — | Part does not apply to this vehicle configuration. | 88280A | — |
| 84340-09370 | SWITCH ASSY, STOP LAMP | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| — | Part does not apply to this vehicle configuration. | 84520 | — |
| 85940-52100 | RELAY ASSY, WINDSHIELD WIPER | 1 | |
Note:MXPA11..LHD..N;MXPH11..LHD..R..FRP;MXPH11..LHD..(N,S,V) Production:2020-07 – 2024-01 | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 | |||
| — | Part does not apply to this vehicle configuration. | 82644B | — |
| 89650-52J10 | COMPUTER ASSY, POWER STEERING | 1 | |
Note:MXPA11..LHD..N;MXPH11..LHD..(N,S);MXPH11..LHD..R..FRP Production:2020-07 – 2024-01 Spec:JTEKT/DENSO | |||
| — | Part does not apply to this vehicle configuration. | 89280 | — |
| 93315-54010 | standard | — | |
| 90179-06274 | standard | — | |
| 90119-W0037 | standard | — | |
Replacements:91673-80616 (fitment: unknown) | |||
| 90119-06A21 | standard | — | |
| 90119-W0333 | standard | — | |
Replacements:90119-06A21 (fitment: unknown) | |||
| 90119-06951 | standard | — | |
| 90119-W0127 | standard | — | |
Replacements:90119-06951 (fitment: unknown) | |||
| 90183-06032 | standard | — | |
| 90178-W0019 | standard | — | |
Replacements:94151-80600 (fitment: unknown) | |||

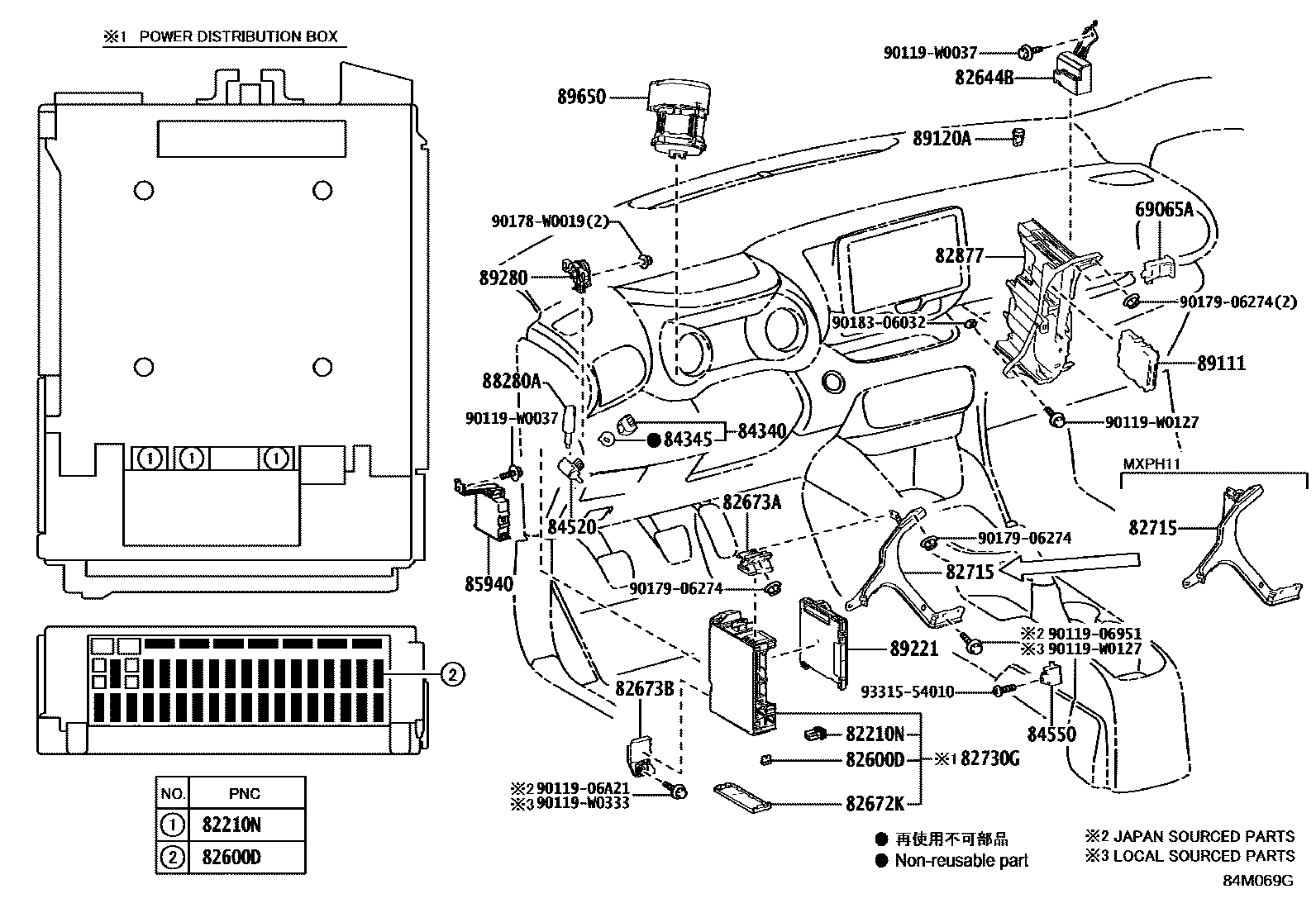

Diagram
33 parts
