Open RegionYearModelModelCode Details
Europe 2022 YARIS FRP MXPA11L-BHXNBW
Catalog: TOYOTA202608 Engine: 1500CC 12-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Steering Description: LEFT-HAND DRIVE VEHICLES Doors Description: 5-DOOR Color Code: 040 Trim Code: FB20 Production: 202007-202401 Model Short: MXPA11L-BHXNBW Region: EU Native Region: EU

Toyota YARIS-FRP 2022 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84810-02260 SWITCH ASSY, POWER WINDOW REGULATOR 1
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
84872-02460 SWITCH ASSY, OUTER MIRROR 1
Note:MXPA11..LHD..N;MXPH11..N..CZEP;MXPH11..LHD..(N,R,V)..FRP Production:2020-07 – 2024-01
84810-02260 SWITCH ASSY, POWER WINDOW REGULATOR, REAR 2
Note:MXPH11..N,V;MXPA11..6F..N;MXPA11..LHD..CVT..N Production:2020-07 – 2024-01 Spec:POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
84040-0D020 MASTER SWITCH ASSY,MULTIPLEX NETWORK 1
Note:MXPA11..LHD..N;MXPH11..LHD..(N,V) Production:2020-07 – 2024-01 Spec:POWER WINDOW-FRONT & REAR(ALL ONE-TOUCH UP/DOWN AUTO)
84231-0D040 SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) 2
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
84231-0D040 SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) 2
Note:MXPA11..6F..N;MXPH11..N,S,V;MXPA11..LHD..CVT..N;MXPH11..LHD..R..FRP Production:2020-07 – 2024-01
90166-70001 standard —
90166-60005 standard —
90164-40103 standard —

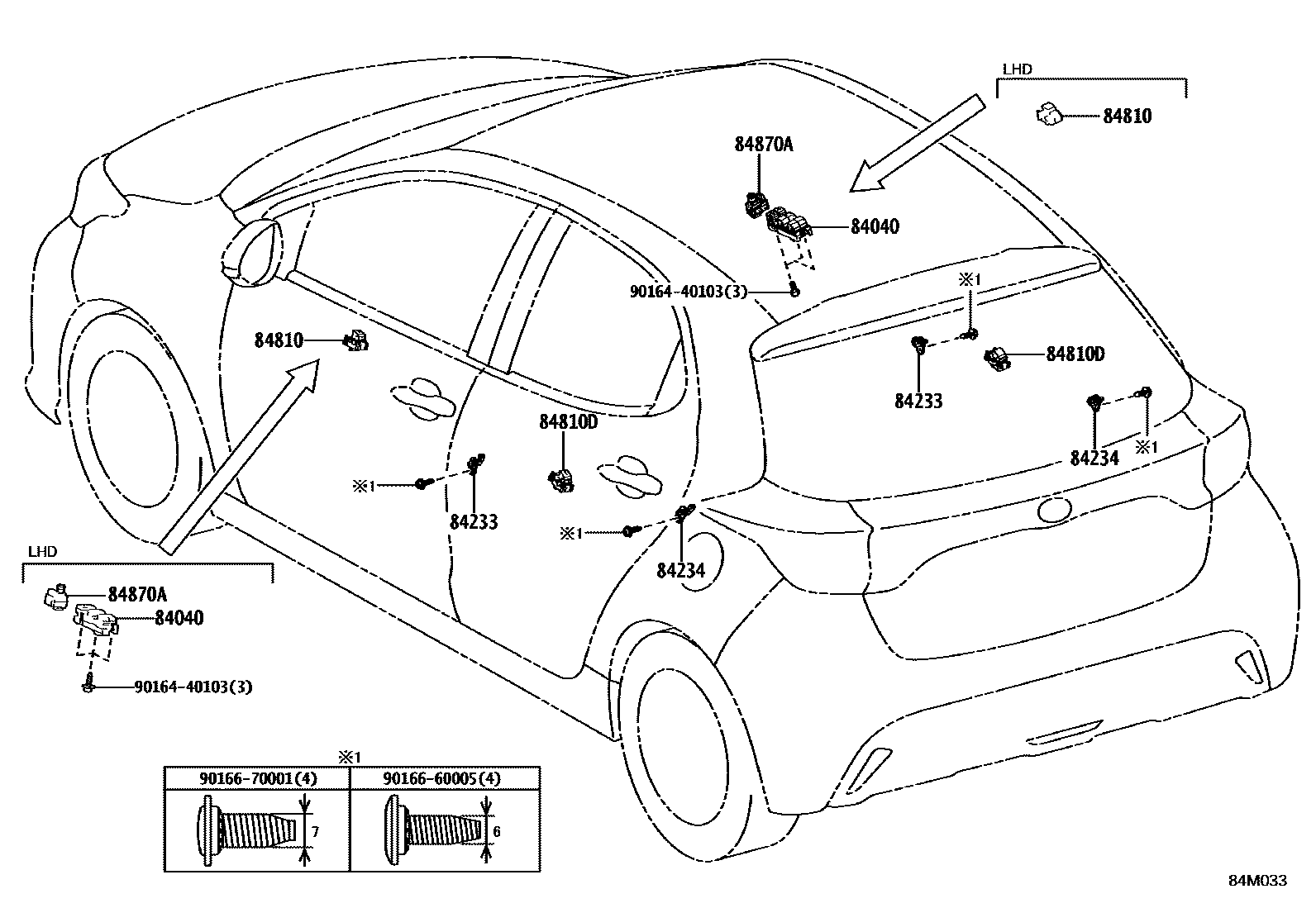

Diagram

9 parts
Toyota YARIS-FRP 2022 — Switch & Relay & Computer
