Lexus ES350-300H 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 89220-33U80 | COMPUTER, MULTIPLEX NETWORK BODY | 1 | |
Note:AXZH10 Production:2018-07 – 2019-07 Spec:KOREA SPEC | |||
| 82666-33740 | HOLDER, CONNECTOR, NO.2 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82610-0E020 | BLOCK ASSY, FUSE | 2 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82663-33150 | COVER, RELAY BLOCK, LOWER, NO.3 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 89227-33030 | COMPUTER, MULTIPLEX TILT & TELESCOPIC | 1 | |
Note:AXZH10 Production:2018-07 – 2020-05 Replacements:89227-48070 (fitment: unknown) Spec:ULTRA LUXURY PACKAGE | |||
| 84345-51010 | ADJUSTER, STOP LAMP SWITCH MOUNTING | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 84340-49075 | SWITCH ASSY, STOP LAMP | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-08 | |||
| 82660-33130 | BLOCK ASSY, RELAY | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82663-33290 | COVER, RELAY BLOCK LOWER, NO.4 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82660-48020 | BLOCK ASSY, RELAY | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82660-48040 | BLOCK ASSY, RELAY | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82660-48030 | BLOCK ASSY, RELAY | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 89121-30020 | SENSOR, AUTOMATIC LIGHT CONTROL | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 82877-33030 | BOX, COMPUTER INTEGRATION, RH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 82660-28350 | BLOCK ASSY, RELAY | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 89111-33090 | COMPUTER, NETWORK GATEWAY | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 | |||
| 82672-33390 | COVER, JUNCTION BLOCK | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 | |||
| — | Part does not apply to this vehicle configuration. | 82672K | — |
| 82730-33Q30 | BLOCK ASSY, INSTRUMENT PANEL JUNCTION | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 90982-09023 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:20A,MINI FUSE,YELLOW | |||
| 90982-09024 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:25A,MINI FUSE | |||
| 90982-09021 | INSTRUMENT PANEL FUSE | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:10A,MINI FUSE,RED | |||
| 90982-08306 | INSTRUMENT PANEL FUSIBLE LINK | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 Spec:30A,FEMALE,PNK,32V | |||
| 82715-33T30 | BRACKET,WIRING HARNESS CLAMP | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 82673-33150 | BRACKET, JUNCTION BLOCK, NO.2 | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 | |||
| 82673-33120 | BRACKET, JUNCTION BLOCK, NO.1 | 1 | |
Note:AXZH10 Production:2018-06 – 2021-10 | |||
| 90987-02027 | RELAY(FOR SECURITY WARNING) | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – … | |||
| 90987-02027 | RELAY, POWER OUTLET SOCKET | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 90987-02027 | RELAY, SEAT HEATER | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE | |||
| 90987-02031 | RELAY, IGCT | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 | |||
| 90987-02027 | RELAY, REAR SEAT HEATER | 2 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC&ULTRA LUXURY PACKAGE | |||
| — | Part does not apply to this vehicle configuration. | 82825A | — |
| — | Part does not apply to this vehicle configuration. | 86590 | — |
| — | Part does not apply to this vehicle configuration. | 82730G | — |
| 90119-06A21 | standard | — | |
| 90179-06274 | standard | — | |
| 91673-80620 | standard | — | |
| 90183-06032 | standard | — | |

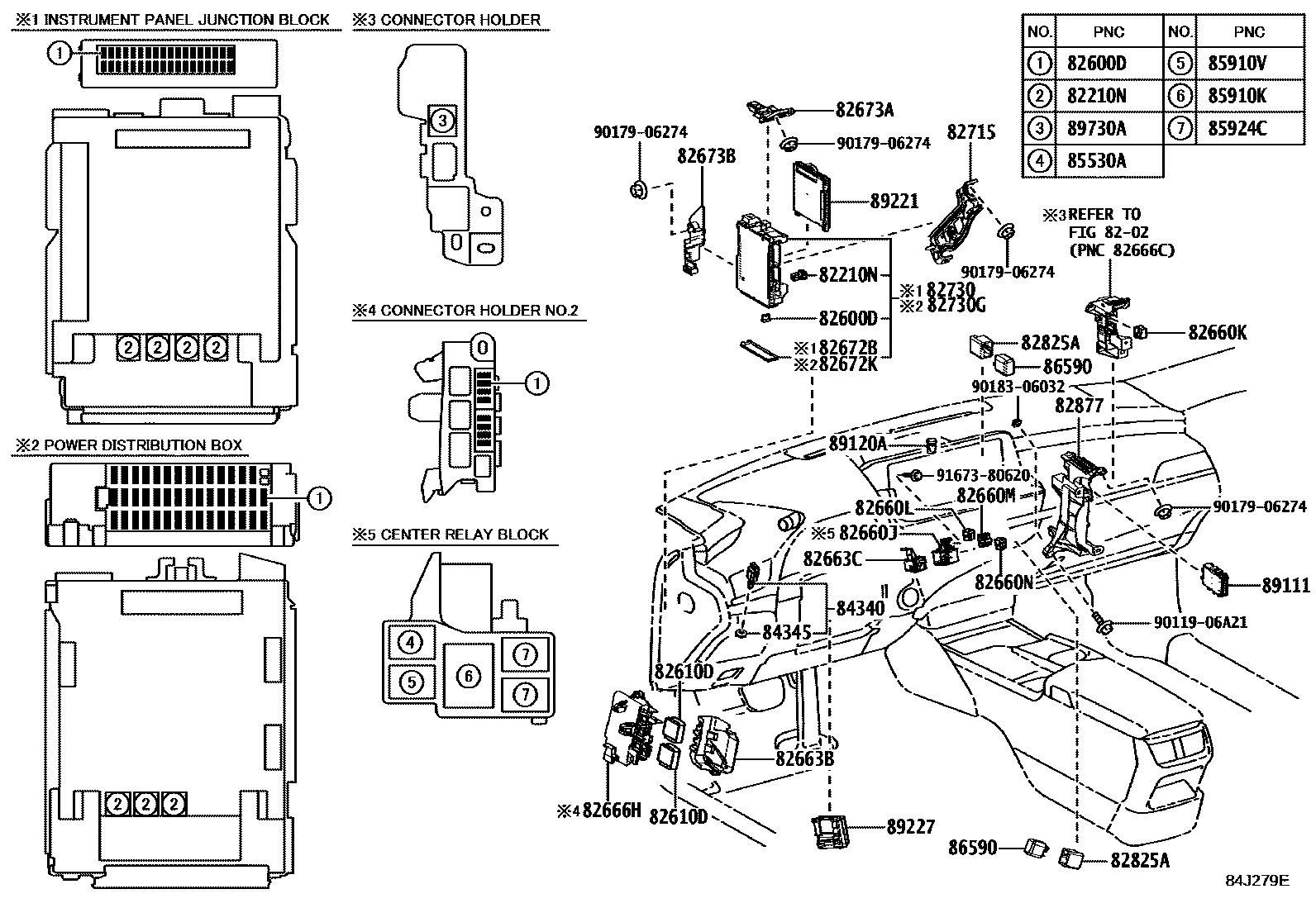

Diagram
34 parts
