Open RegionYearModelModelCode Details
USA / Canada 2018 ES350 300H AXZH10L-AEXGBA
Catalog: LEXUS202608 Engine: 2500CC 16-VALVE DOHC Transmission Description: CONTINUOUSLY VARIABLE TRANSMISSION Color Code: 4X8 Trim Code: LC11 Production: 201807-999999 Model Short: AXZH10L-AEXGBA Region: NA Native Region: US

Lexus ES350-300H 2018 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
85532-50020 SOCKET, USB CHARGER 1
Note:AXZH10,GSZ10 Production:2018-06 – 2019-09
— Part does not apply to this vehicle configuration. 85532C —
84970-33230 SWITCH ASSY, COMBINATION, NO.3 1
Note:AXZH1# Production:2018-07 – …
85530-42010 SOCKET ASSY, POWER OUTLET, NO.2 1
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10
85535-33110 COVER, POWER OUTLET SOCKET, NO.2 1
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10
85530-42010 SOCKET ASSY, POWER OUTLET, NO.1 1
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10
85535-44050-C1 COVER, POWER OUTLET SOCKET, NO.1 1
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 Spec:BLACK

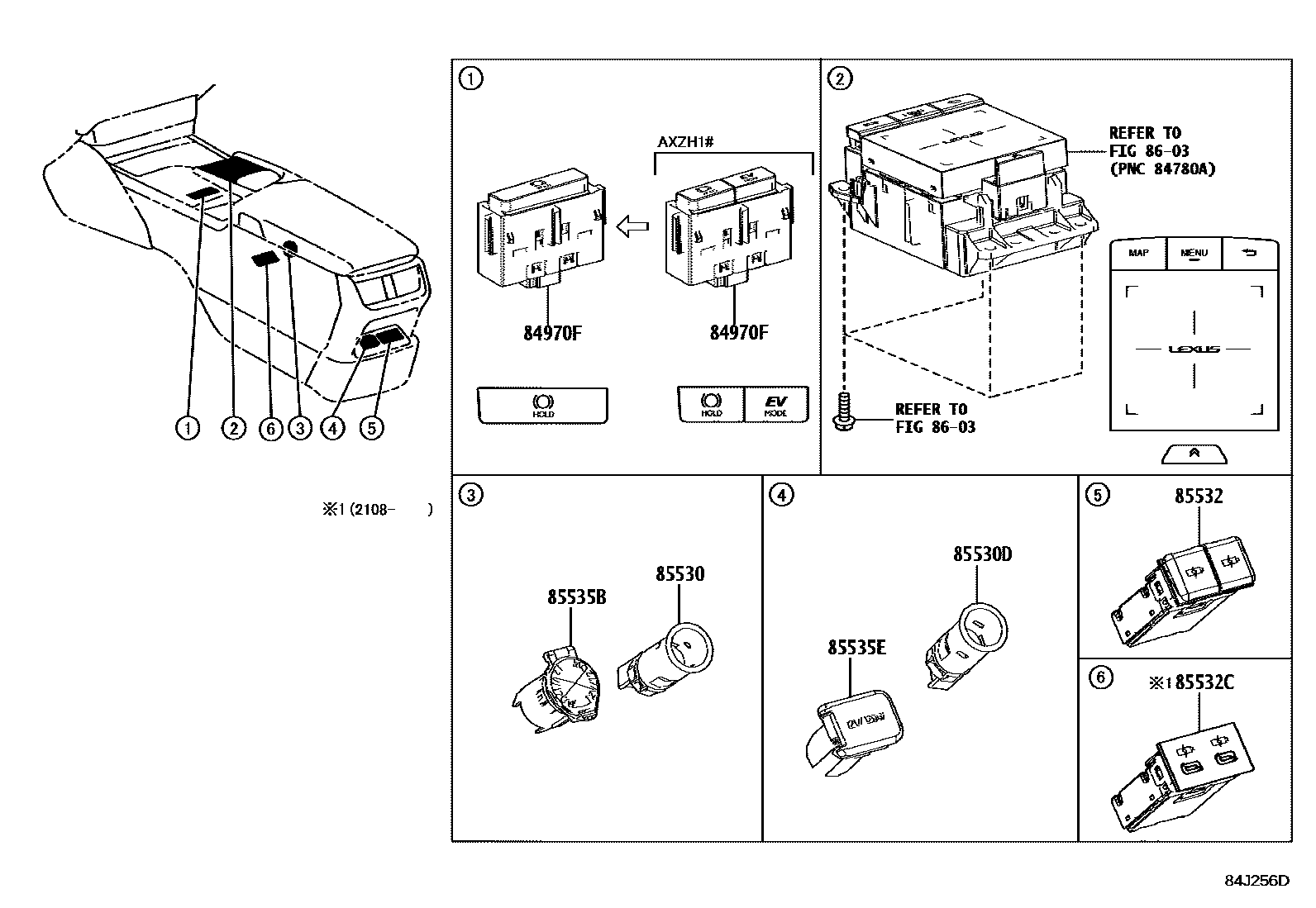

Diagram

6 parts
Lexus ES350-300H 2018 — Switch & Relay & Computer
