Lexus ES350-300H 2018 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84523-11010 | WIRE, SWITCH NO.1 | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 84250-33610 | SWITCH ASSY, STEERING PAD | 1 | |
Note:AXZH10,GSZ10 Production:2018-06 – 2020-08 | |||
| 84308-11020 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 84319-11010 | HOUSING, STEERING WHEEL SWITCH | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … | |||
| 8924B-33060 | SENSOR, STEERING | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – 2021-10 | |||
| 84329-33140 | SWITCH, TURN SIGNAL | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Spec:KOREA SPEC | |||
| 84652-11010 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:AXZH10 Production:2018-07 – 2020-08 Replacements:84652-11020 (fitment: unknown) Spec:KOREA SPEC&WINDSHIELD WIPER CONTROL-AUTO WIPER(RAIN SENSOR) | |||
| 89235-33010 | SWITCH, TILT & TELESCOPIC | 1 | |
Note:AXZH1# Production:2018-07 – 2021-10 Spec:ULTRA LUXURY PACKAGE | |||
| 84610-33030 | SWITCH ASSY, TRANSMISSION SHIFT | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:LH | |||
| 84610-33040 | SWITCH ASSY, TRANSMISSION SHIFT | 1 | |
Note:AXZH1#,GSZ10 Production:2018-06 – … Spec:RH | |||
| 90159-50199 | standard | — | |
| 90159-50265 | standard | — | |

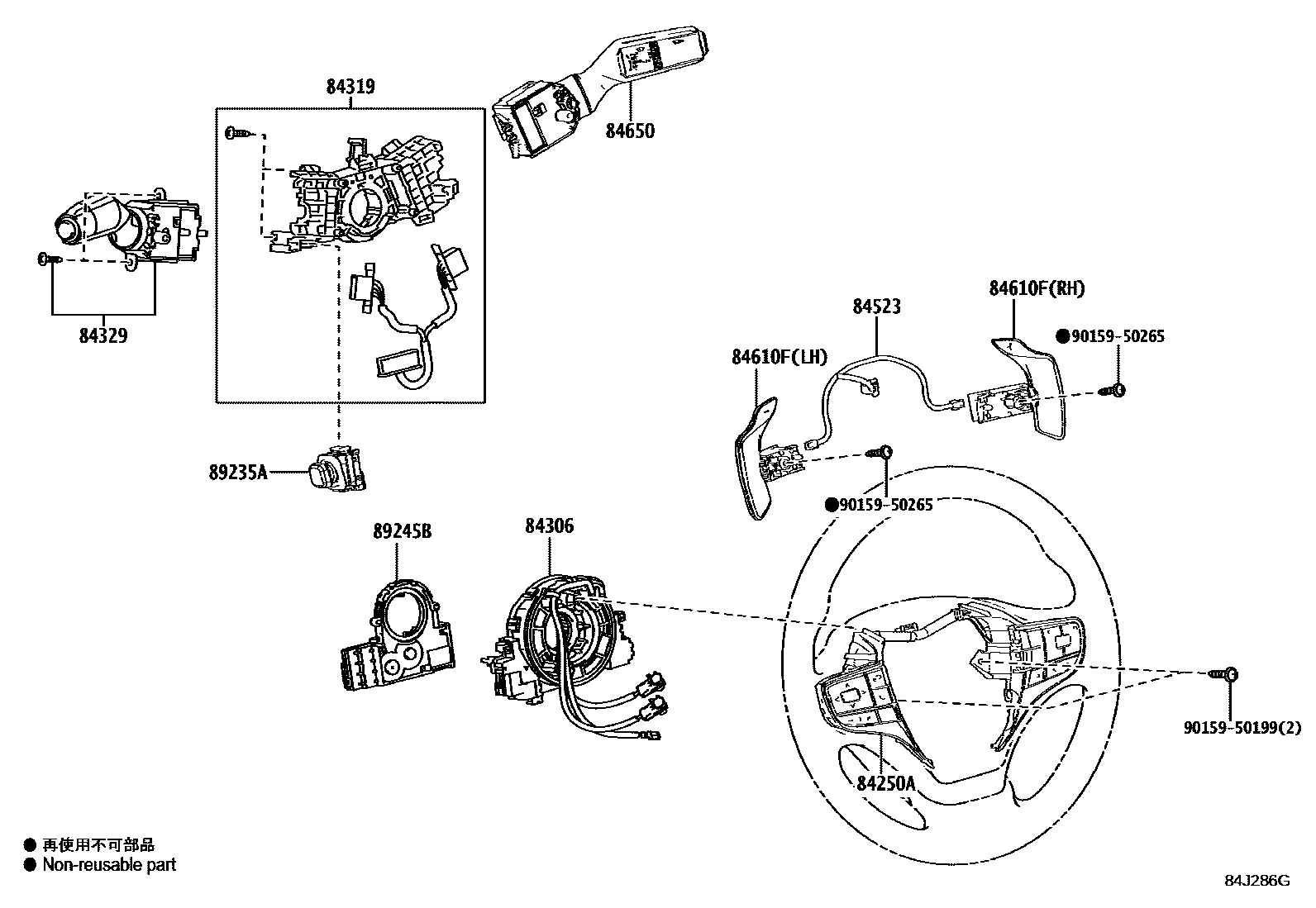

Diagram
12 parts
