General 2016 RAV4 ASA42L-ANTGK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: LA20 Production: 201212-201510 Model Short: ASA42L-ANTGK Region: OTHER Native Region: GR

Toyota RAV4 2016 — Switch & Relay & Computer

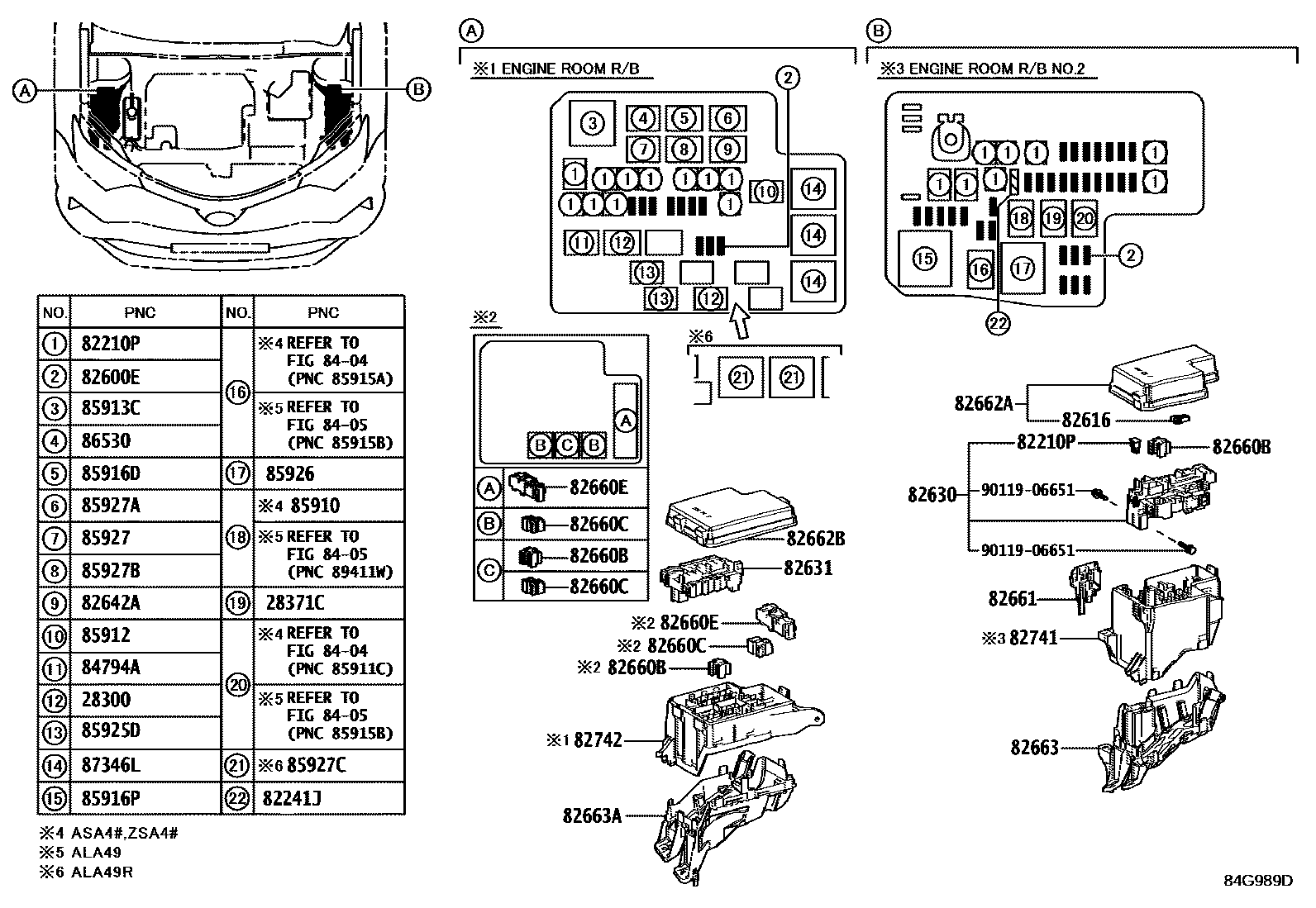

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
82630-42020 HOLDER ASSY, FUSE 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
90982-08286 ENGINE ROOM FUSIBLE LINK 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:140A,TERM.:MALE,RBR
90982-08294 ENGINE ROOM FUSIBLE LINK 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:40A,FEMALE,GRN,58V
90982-08295 ENGINE ROOM FUSIBLE LINK 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:30A,FEMALE,PNK,58V
90982-08296 ENGINE ROOM FUSIBLE LINK 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:50A,FEMALE,RED,58V
90982-08305 ENGINE ROOM FUSIBLE LINK 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:80A,TERM.:FEMALE,BLK
— Part does not apply to this vehicle configuration. 82660E —
82660-0H070 BLOCK ASSY, RELAY 1
Note:ASA44..RHD;ZSA42..ARL,SA;ALA49..6F..G..GEN;ZSA4#..RHD..G..GEN;ALA49..RHD..6F..(G,M);ASA4#,ZSA4#..LHD..(6FC,A)..G Production:2015-10 – 2018-12
82660-52010 BLOCK ASSY, RELAY 1
Note:ASA4#,ZSA4#..LHD..(6FC,A)..G..GEN Production:2015-10 – 2018-12
82631-42060 HOLDER, FUSE 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
82662-42620 COVER, RELAY BLOCK, UPPER, NO.2 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..RHD..G;ZSA42..LHD..(M,X) Production:2015-10 – 2016-08
82663-42110 COVER, RELAY BLOCK, LOWER, NO.2 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
82663-42100 COVER, RELAY BLOCK, LOWER 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
82661-42040 COVER, RELAY BLOCK, NO.1 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
82662-42410 COVER, RELAY BLOCK, UPPER, NO.1 1
Note:ASA4# Production:2015-10 – 2018-12
82741-42020 BLOCK, ENGINE ROOM RELAY 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 85913C —
90982-09019 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:5A,MINI FUSE,TAN
90982-09020 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:7.5A,MINI FUSE,BROWN
90982-09021 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:10A,MINI FUSE,RED
90982-09022 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:15A,MINI FUSE,BLUE
90982-09023 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:20A,MINI FUSE,YELLOW
90982-09024 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:25A,MINI FUSE
90982-09025 ENGINE ROOM FUSE 1
Note:ASA42..M,X;ASA42..G..GEN;ALA49..6F..(G,M);ASA44..(M,X)..GCC;ASA44,ZSA4#..ARL,GEN,SA Production:2015-10 – 2018-12 Spec:30A,MINI FUSE,GRN
90987-02027 RELAY ASSY, HORN 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
90987-04004 RELAY, COOLING FAN, NO.2 1
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12
90987-02027 RELAY, FOG LAMP 1
Note:ASA4#,ZSA4#..G,M;ALA49..6F..(G,M) Production:2015-10 – 2018-12
90987-02025 RELAY, HEADLAMP DIMMER 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
90987-02027 RELAY ASSY, CIRCUIT OPENING 1
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12
90987-02027 RELAY, IGNITION, NO.2 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4#;2ADFTV..ALA49..6F..(G,M) Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 87346L —
90987-02025 RELAY, HEADLAMP 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
82241-42010 PIN, SHORT 1
Note:ASA4#,ZSA4#..G,M;ALA49..6F..(G,M) Production:2015-10 – 2018-12
90987-02027 RELAY, COOLING FAN 1
Note:ZSA42..RHD;ASA4#,ZSA44;ZSA42..LHD..CVT;ALA49..6F..(G,M);ZSA42..LHD..6F..X Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 85912 —
— Part does not apply to this vehicle configuration. 84794A —
90987-02027 RELAY, RUNNING LIGHT 1
Note:ASA44,ZSA4#..RHD;ALA49..6F..G..GEN;ASA4#,ZSA4#..LHD..G;ALA49..RHD..6F..(G,M) Production:2015-10 – 2018-12
90987-02027 RELAY, COOLING FAN, NO.3 1
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12
28300-21020 RELAY ASSY, STARTER 1
Note:2ARFE,3ZRFE..ASA4#,ZSA4#;2ADFTV..ALA49..6F..(G,M) Production:2015-10 – 2018-12
90987-02027 RELAY, PTC HEATER 2
Note:ASA4#,ZSA4#..LHD..G..GEN Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 85927C —
82616-58010 PULLER, FUSE 1
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12
82741-42031 BLOCK, ENGINE ROOM RELAY, NO.2 1
Note:ASA4#;ZSA42..RHD;ZSA44..M,X;ZSA44..A..G;ZSA44..RHD..G;ALA49..6F..(G,M);ZSA42..LHD..(6F,A);ZSA42..LHD..B..(M,X) Production:2015-10 – 2018-12
90119-06651 standard —
