Toyota RAV4 2016 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 77169-14020 | GASKET, FUEL SENDER GAGE | 2 | |
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12 | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 84231-60070 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| — | Part does not apply to this vehicle configuration. | 89747F | — |
| 84810-52030 | SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 84810-52030 | SWITCH ASSY, POWER WINDOW REGULATOR, REAR | 2 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 8598A-42010 | BATTERY, DOOR CONTROL | 1 | |
Note:ASA4#,ZSA4#;ALA49..6F..(G,M) Production:2015-10 – 2018-12 | |||
| 84820-42210 | MASTER SWITCH ASSY, POWER WINDOW REGULATOR | 1 | |
Note:ASA4#..X..GCC;ASA4#..LHD..(G,M);ALA49,ZSA4#..LHD..(CVT,MTM)..(G,M) Production:2015-10 – 2018-12 | |||
| 84840-48020 | SWITCH ASSY, BACK DOOR OPENER | 1 | |
Note:ASA44..G;ASA42,ZSA42..G..GEN;ALA49,ZSA44..(CVT,MTM)..G;ASA42,ZSA42..(G,M)..(ARL,GCC);ALA49,ASA44..M..(DCRE,EFI)..(ARL,GCC) Production:2015-10 – 2018-12 | |||
| 84930-42040 | SWITCH ASSY, DOOR CONTROL | 1 | |
Note:ZSA44..RHD..G;ASA44..6F..M..GEN;ASA44..G..(GCC,GEN);ALA49,ZSA42..(6F,A)..M;ASA44..M..(ARL,GCC,SA);ASA42,ZSA44..LHD..(G,M);ALA49,ZSA42..(CVT,MTM)..G..GEN;ASA44,ZSA42..LHD..(6FC,B)..M..GEN Production:2015-10 – 2018-12 Spec:POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) | |||
| 88162-0W380 | SENSOR, BLIND SPOT MONITOR, RH | 1 | |
Note:ASA4#,AVA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2016-08 Spec:LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) | |||
| 88163-42010 | COVER, BLIND SPOT MONITOR, RH | 1 | |
Note:ASA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2018-12 Spec:LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) | |||
| 88162-0W380 | SENSOR, BLIND SPOT MONITOR, LH | 1 | |
Note:ASA4#,AVA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2016-08 Spec:LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) | |||
| — | Part does not apply to this vehicle configuration. | 88790F | — |
| 88173-42010 | COVER, BLIND SPOT MONITOR, LH | 1 | |
Note:ASA4#,ZSA42..LHD..(6FC,A)..G..GEN Production:2015-10 – 2018-12 Spec:LANE CHANGE ASSIST-WITH(BLIND SPOT MONITOR) | |||
| 89222-42040 | COMPUTER, MULTIPLEX NETWORK DOOR | 1 | |
Note:ASA44..M..ARL;ALA49,ZSA42..G..GEN;ALA49,ZSA42..M..(ARL,GEN);ASA4#,AVA4#,ZSA44..(G,M)..(GCC,GEN) Production:2015-10 – 2016-03 Replacements:89222-42041 (fitment: unknown) Spec:POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) | |||
| — | Part does not apply to this vehicle configuration. | 84927 | — |
| 89747-30040 | BUZZER, POWER BACK DOOR WARNING | 1 | |
Note:ASA42..G..GEN;ASA42..(G,M)..GCC;ASA44..G..(GCC,GEN);ALA49,ZSA4#..(CVT,MTM)..G..GEN;ALA49,ASA44,ZSA42..M..(DCRE,EFI)..(ARL,GCC) Production:2015-10 – 2018-12 Spec:POWER DOOR LOCK-WITH(AUTO LOCK(SPEED)+POWER BACK DOOR) | |||
| — | Part does not apply to this vehicle configuration. | 891B2 | — |
| — | Part does not apply to this vehicle configuration. | 82620B | — |
| — | Part does not apply to this vehicle configuration. | 82600L | — |
| 83320-49205 | GAGE ASSY, FUEL SENDER | 1 | |
Note:ASA4#,ZSA4# Production:2015-10 – 2018-12 | |||
| 90164-40103 | standard | — | |
| 90166-70001 | standard | — | |
| 94151-80600 | standard | — | |
| 90179-06178 | standard | — | |
| 91553-80612 | standard | — | |
| 90119-06915 | standard | — | |
| 93319-A4010 | standard | — | |

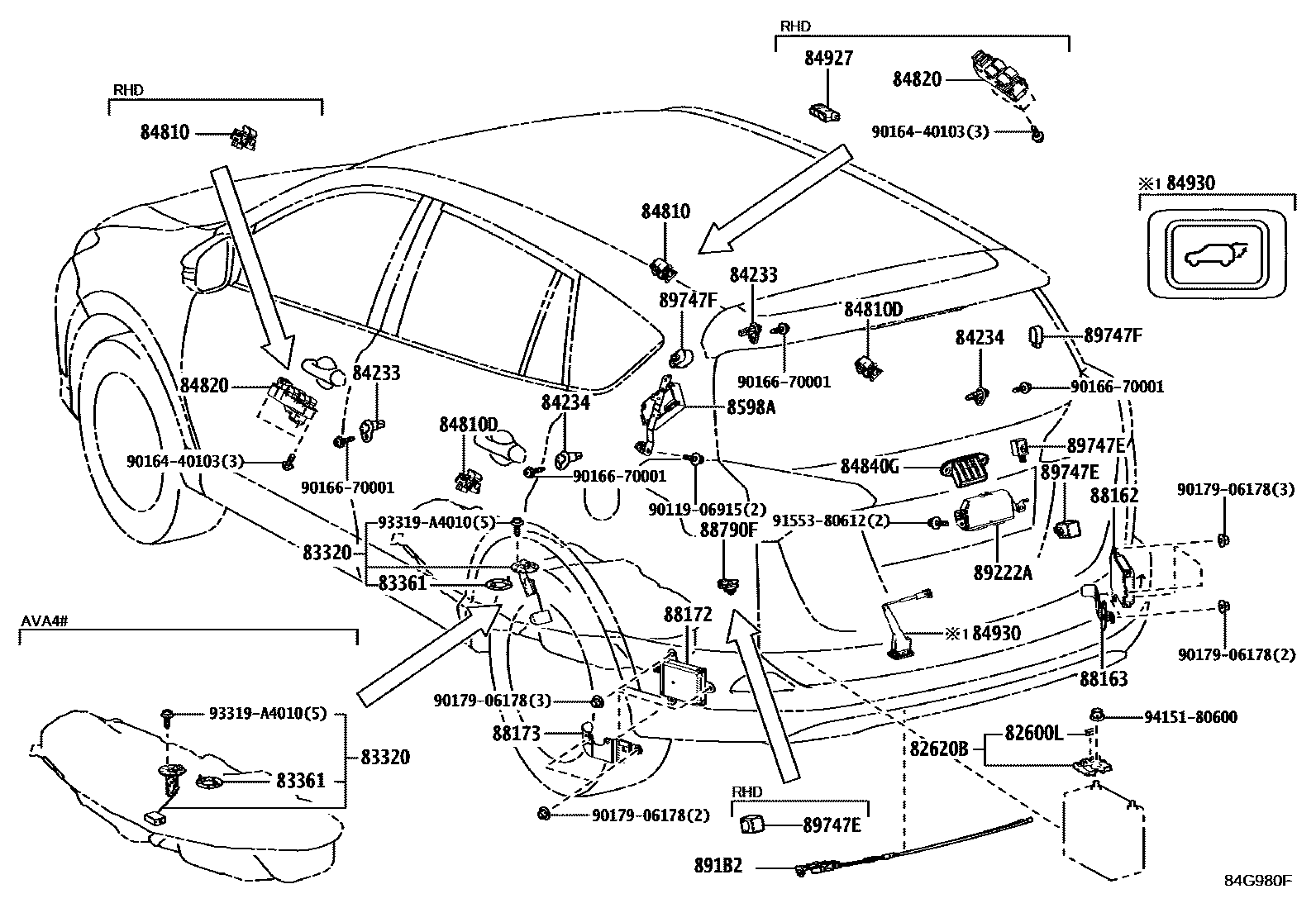

Diagram
23 parts
