General 2016 RAV4 ASA42L-ANTGK
Catalog: TOYOTA202608 Engine: 2500CC 16-VALVE DOHC EFI Transmission Description: AUTOMATIC TRANSMISSION, MTM, 6-SPEED FLOOR SHIFT Vehicle Grade: G TYPE Steering Description: LEFT-HAND DRIVE VEHICLES Destination Description: GENERAL COUNTRIES Color Code: 209 Trim Code: LA20 Production: 201212-201510 Model Short: ASA42L-ANTGK Region: OTHER Native Region: GR

Toyota RAV4 2016 — Switch & Relay & Computer

Browse vehicle diagrams

Spare Parts

Part numberDescriptionPNCQty
84920-60090-C0 SWITCH ASSY, POWER SEAT 1
Note:ALA49..6F..G;ASA4#,ZSA4#..G Production:2015-10 – 2018-12 Spec:BLACK,TRIM1#,2#,3#,4#
84921-22090-C0 KNOB, POWER SEAT SWITCH (FOR RECLINING) 1
Note:ALA49..6F..G..GEN;ASA4#,ZSA4#..LHD..G Production:2015-10 – 2018-12 Spec:BLACK,TRIM1#,2#,3#,4#
84921-22100-C0 KNOB, POWER SEAT SWITCH (FOR SLIDE & VERTICAL) 1
Note:ALA49..6F..G..GEN;ASA4#,ZSA4#..LHD..G Production:2015-10 – 2018-12 Spec:BLACK,TRIM1#,2#,3#,4#
84922-60180 SWITCH, FRONT POWER SEAT 1
Note:ALA49..6F..G..GEN;ASA4#,ZSA4#..LHD..G Production:2015-10 – 2018-12
— Part does not apply to this vehicle configuration. 84070 —
93560-14010 standard —

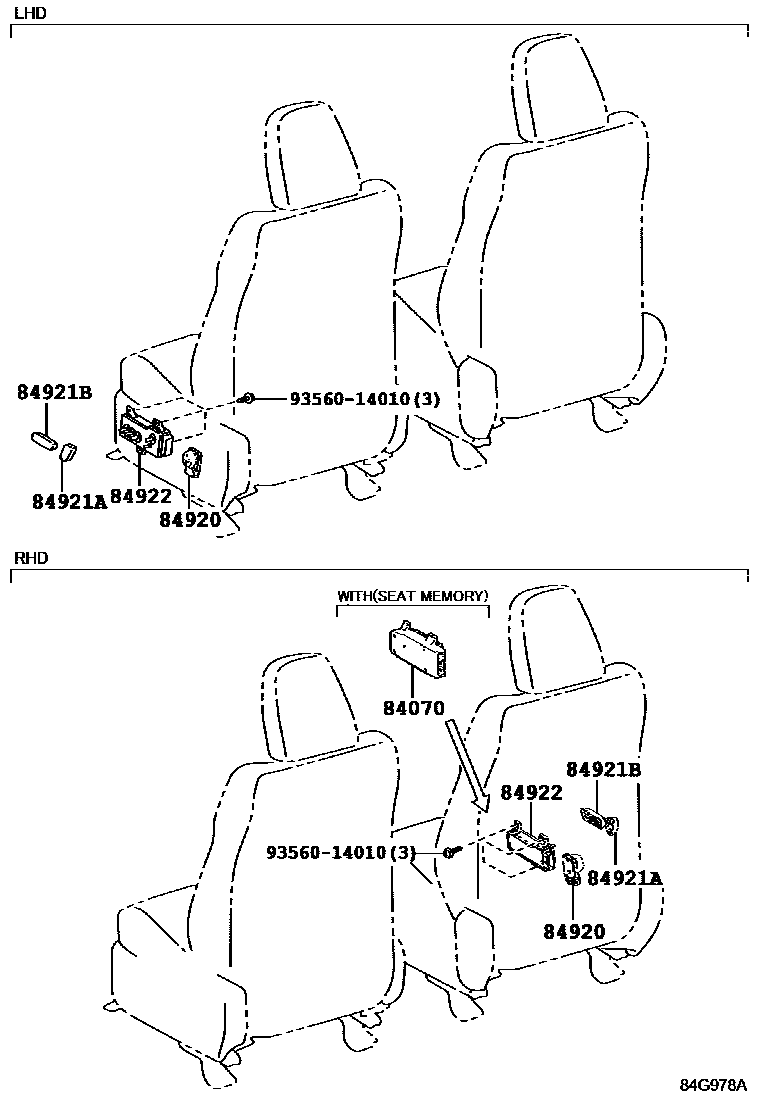

Diagram

5 parts
Toyota RAV4 2016 — Switch & Relay & Computer
