Toyota Hilux 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 90011-01056 | BULB, HAZARD WARNING SIGNAL SWITCH | 1 | |
Note:TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;KUN26,36..(SCB,XTR)..SA;KUN35,TGN26..SR..(GEN,PHL,TH);KUN35..DLX..(ANCOM,PHL,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN36..(DCB,SMT)..(ARL,TH);GGN15,TGN36..DCB..DLX..(ANCOM,ARL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,PHL,TH);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;TGN26..LHD..(DCB,SCB)..(ANCOM,GCC,GEN,SA)..CBU;KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,SA,TH);GGN15,KUN16,TGN36..(SCB,SMT,XTR)..(ANCOM,ARL,SA,TH);KUN10,15,LAN15,25,35,TGN10,11..(DCB,SCB,SMT)..(GCC,GEN,IDN,PHL,SA,TH) Production:2008-08 – … Spec:14V 0.91W | |||
| — | Part does not apply to this vehicle configuration. | 85535B | — |
| 84332-0K010 | SWITCH ASSY, HAZARD WARNING SIGNAL | 1 | |
Note:TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;KUN26,36..(SCB,XTR)..SA;KUN35,TGN26..SR..(GEN,PHL,TH);KUN35..DLX..(ANCOM,PHL,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN25,KUN36..(DCB,SMT)..(ARL,TH);GGN15,TGN36..DCB..DLX..(ANCOM,ARL);KUN26..(DCB,SCB,SMT,XTR)..(ARL,GEN,PHL,TH);KUN16,TGN15..(DCB,SCB)..(ARL,GCC,GEN,SA)..CBU;TGN26..LHD..(DCB,SCB)..(ANCOM,GCC,GEN,SA)..CBU;KUN25..(DCB,SCB,SMT)..(ANCOM,GCC,GEN,MA,PKN,SA,TH);GGN15,KUN16,TGN36..(SCB,SMT,XTR)..(ANCOM,ARL,SA,TH);KUN10,15,LAN15,25,35,TGN10,11..(DCB,SCB,SMT)..(GCC,GEN,IDN,PHL,SA,TH) Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85539 | — |
| — | Part does not apply to this vehicle configuration. | 85530 | — |
| — | Part does not apply to this vehicle configuration. | 84119 | — |
| — | Part does not apply to this vehicle configuration. | 84118 | — |
| 85513-28010 | COVER, CIGARETTE LIGHTER | 1 | |
Note:GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85515 | — |
| 85533-30060 | LENS, CIGARETTE LIGHTER INDICATOR | 1 | |
Note:TGN16..XTR;TGN16..ARL,GCC,SA;TGN36..ANCOM..IV3;TGN26..DCB..DLX..ANCOM;KUN25,TGN16..(SCB,SMT)..DLX..(MA,TH);KUN15..(DLX,STD)..(GCC,GEN,PHL,SA,TH);KUN26,TGN36..LHD..(ANCOM,GEN,LA)..CBU;TGN26..LHD..(DCB,SCB)..(GCC,GEN,LA,SA);TGN26..(SCB,THDCB)..DLX..(ANCOM,GEN)..CBU;GGN25,KUN10,36,TGN10,11..(GCC,IDN,LA)..CBU;KUN25,35..DLX..(ANCOM,GCC,GEN,LA,PHL,PKN,SA);KUN16,LAN15,25,35,TGN15..DLX..(GCC,GEN,SA,TH)..CBU Production:2008-08 – … | |||
| 84790-0K010 | SWITCH ASSY, REAR WINDOW DEFOGGER | 1 | |
Note:KUN25..THDCB;TGN16..4FC..TH;TGN16..RHD..DCB;GGN15,KUN16..DCB..5F..DLX;KUN16,TGN26..SMT,THDCB,XTR;GGN15,KUN16..(DCB,XTR)..(4FC,5FC);KUN25,36,TGN26,36..(DCB,SMT)..(ANCOM,LA,MA,TH);GGN25,KUN15..(DCB,SMT)..(HDCR,HTWC)..(ARL,LA,TH);KUN26,35..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GEN,LA,TH) Production:2008-08 – … | |||
| 85500-28050 | LIGHTER ASSY, CIGARETTE | 1 | |
Note:GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … | |||
| 85520-28010 | KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | 1 | |
Note:GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 85500B | — |
| 90011-01055 | BULB(FOR REAR WINDOW DEFOGGER SWITCH) | 1 | |
Note:KUN25..THDCB;TGN16..4FC..TH;TGN16..RHD..DCB;GGN15,KUN16..DCB..5F..DLX;KUN16,TGN26..SMT,THDCB,XTR;GGN15,KUN16..(DCB,XTR)..(4FC,5FC);KUN25,36,TGN26,36..(DCB,SMT)..(ANCOM,LA,MA,TH);GGN25,KUN15..(DCB,SMT)..(HDCR,HTWC)..(ARL,LA,TH);KUN26,35..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GEN,LA,TH) Production:2008-08 – … Spec:14V 0.84W,W(CAP) | |||
| 90011-01056 | BULB(FOR REAR WINDOW DEFOGGER SWITCH) | 1 | |
Note:KUN25..THDCB;TGN16..4FC..TH;TGN16..RHD..DCB;GGN15,KUN16..DCB..5F..DLX;KUN16,TGN26..SMT,THDCB,XTR;GGN15,KUN16..(DCB,XTR)..(4FC,5FC);KUN25,36,TGN26,36..(DCB,SMT)..(ANCOM,LA,MA,TH);GGN25,KUN15..(DCB,SMT)..(HDCR,HTWC)..(ARL,LA,TH);KUN26,35..(DCB,SMT,THDCB,XTR)..(ANCOM,ARL,GEN,LA,TH) Production:2008-08 – … Spec:14V 0.91W | |||
| — | Part does not apply to this vehicle configuration. | 87290 | — |
| — | Part does not apply to this vehicle configuration. | 87290B | — |
| — | Part does not apply to this vehicle configuration. | 84660C | — |
| — | Part does not apply to this vehicle configuration. | 84725B | — |
| — | Part does not apply to this vehicle configuration. | 84725A | — |
| 85510-22110 | SOCKET & RETAINER ASSY, CIGARLIGHTER | 1 | |
Note:GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;KUN15,TGN16..XTR..DLX;GGN15,KUN16..SCB,SMT,XTR;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN10,15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,IDN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … | |||
| — | Part does not apply to this vehicle configuration. | 84988L | — |
| — | Part does not apply to this vehicle configuration. | 84870A | — |
| 90170-T0001 | standard | — | |
Replacements:90170-09002 (fitment: unknown) | |||

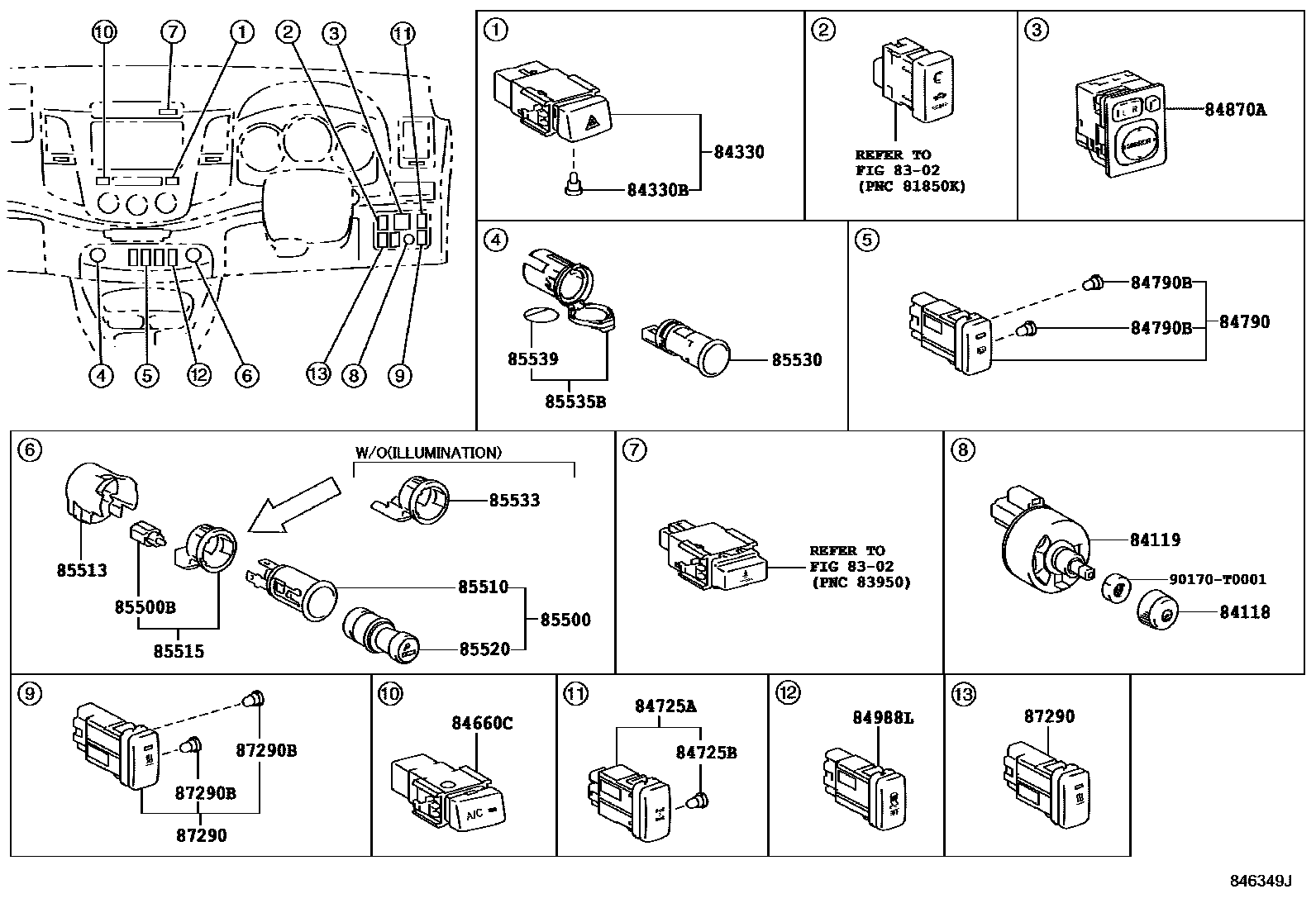

Diagram
11 parts
