Toyota Hilux 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 83320-0K040 | GAGE ASSY, FUEL SENDER | 1 | |
Note:KUN25..(DCB,SCB,SMT)..(GCC,GEN,MA,PKN,TH);GGN15,25,KUN15,16,26,3#,TGN15,16,26..(DCB,SCB,SMT,XTR)..(ARL,GCC,GEN,IDN,PHL,TH) Production:2008-08 – 2012-02 | |||
| — | Part does not apply to this vehicle configuration. | 84810 | — |
| — | Part does not apply to this vehicle configuration. | 84810D | — |
| — | Part does not apply to this vehicle configuration. | 84820 | — |
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | 2 | |
Note:GGN25..5FC..SA;GGN15..DCB..DLX;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;TGN16..ARL,GCC,SA,TH;GGN25..DCB..(ANCOM,ARL,LA);TGN26..LHD..(GCC,GEN,LA,SA);GGN15,KUN16,TGN10..SCB,SMT,XTR;GGN15,KUN16..DCB..(4FC,5FC)..SR;KUN15,26,TGN16..XTR..(ARL,GEN,TH);KUN15..(DCB,SCB,SMT)..(GCC,GEN,PHL,SA,TH);KUN16,TGN15,36..(DCB,SCB)..(ANCOM,ARL,GCC,GEN,LA,SA)..CBU;GGN35,KUN10,2#,3#,LAN15,25,35,TGN11..(DCB,SCB,SMT,THDCB,THSCB)..(DLX,SR)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … Replacements:84231-53010 (fitment: unknown) | |||
| 84231-0K020 | SWITCH ASSY, COURTESY LAMP (FOR REAR DOOR) | 2 | |
Note:GGN25..5FC..SA;GGN15,KUN16..DCB..DLX;GGN25..DCB..(ANCOM,ARL,LA);TGN16..DCB..(ARL,GCC,SA,TH);GGN15,KUN16..DCB..(4FC,5FC)..SR;GGN35,KUN15,2#,3#,LAN15,25,35,TGN15,26,36..(DCB,THDCB)..(ANCOM,ARL,GCC,GEN,LA,MA,PHL,PKN,SA,TH) Production:2008-08 – … Replacements:84231-53010 (fitment: unknown) | |||
| — | Part does not apply to this vehicle configuration. | 84222D | — |
| — | Part does not apply to this vehicle configuration. | 82223F | — |
| 90164-T0005 | standard | — | |
Replacements:90164-40103 (fitment: unknown) | |||
| 90109-06296 | standard | — | |
| 90430-18008 | standard | — | |

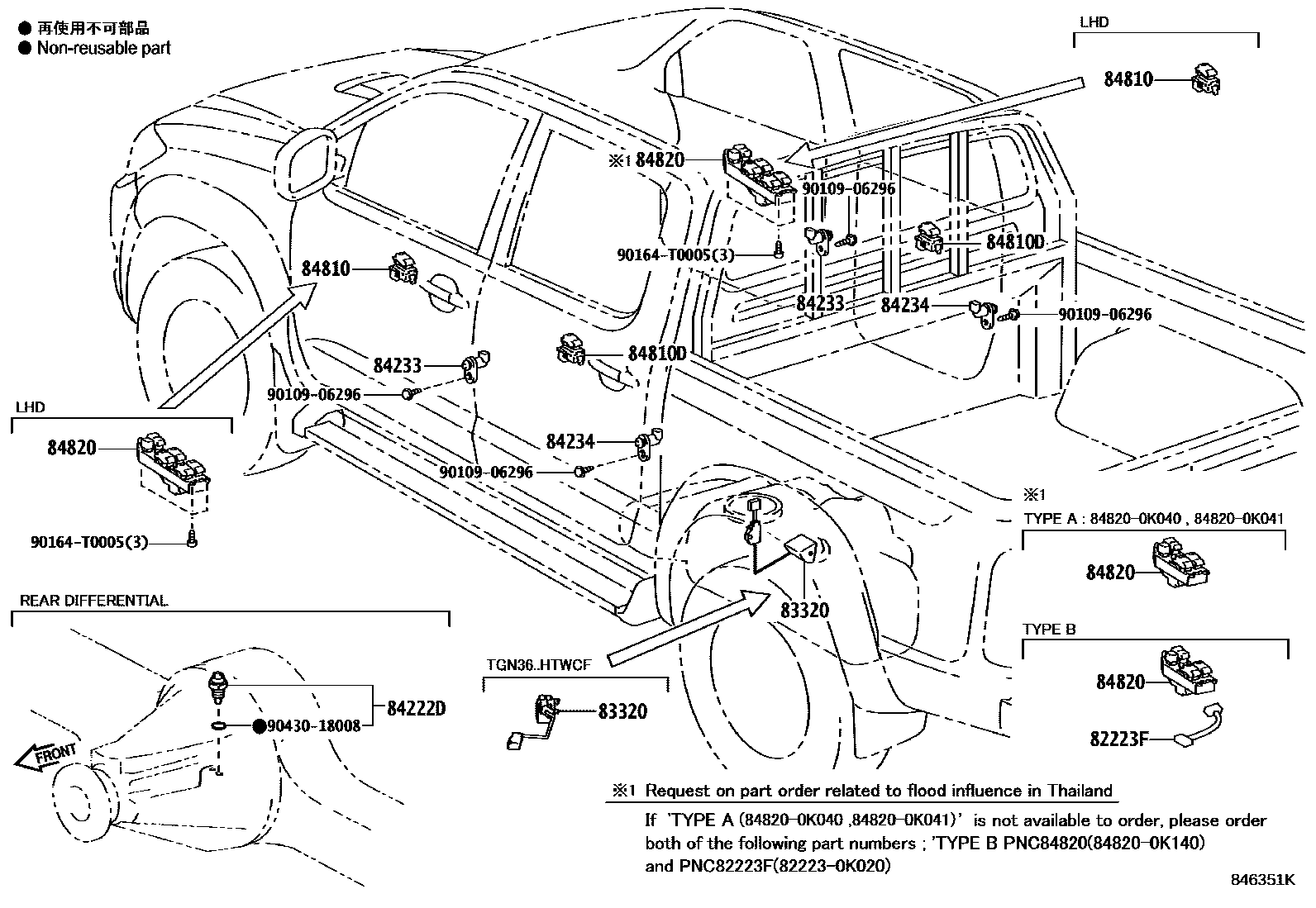

Diagram
6 parts
