Toyota Hilux 2010 — Switch & Relay & Computer
Spare Parts
| Part number | Description | PNC | Qty |
|---|---|---|---|
| 84052-0K020 | SWITCH ASSY, UN-LOCK WARNING | 1 | |
Note:TGN36..5F..CBU;TGN36..4FC..DLX;TGN10,15..GCC,SA;KUN15,35..SR..PHL;TGN36..ANCOM..IV3;TGN26..DCB..ANCOM;KUN15,TGN26..GCC,LA;KUN25..SCB..(LA,MA);KUN15,25..RHD..(SA,TH);KUN35..ANCOM,GEN,LA,SA,TH;KUN25..DCB..(ANCOM,GCC,LA);GGN15,35,KUN10,16,26,36,TGN11;GGN25,KUN25..(4FC,5FC)..(MA,SA);GGN25,TGN16..ANCOM,ARL,GCC,LA,TH;KUN25,TGN26..LHD..(SCB,THDCB,THSCB)..(ANCOM,GEN)..CBU Production:2008-08 – 2012-04 Replacements:84052-71010 (fitment: unknown) | |||
| 84450-0K010 | SWITCH ASSY, IGNITION OR STARTER | 1 | |
Note:TGN36..CBU;KUN25..SCB..MA;TGN26..ANCOM..CBU;TGN36..ANCOM..IV3;GGN25..ANCOM,ARL,LA;TGN26..LHD..(GCC,GEN,LA,SA);GGN25,KUN25..(4FC,5FC)..(MA,SA);KUN25..ANCOM,GCC,GEN,LA,PKN,SA,TH;GGN15,35,KUN1#,26,3#,LAN15,25,35,TGN1#..ANCOM,ARL,GCC,GEN,IDN,LA,PHL,SA,TH Production:2008-08 – 2012-04 | |||
| 85432-0K010 | SOLENOID, KEY INTERLOCK | 1 | |
Note:TGN36..4FC..DLX;GGN15,25,35,KUN16,2#,36,TGN16,26..4FC,5FC Production:2008-08 – 2012-04 Replacements:85432-71010 (fitment: unknown) | |||
| 84140-0K020 | SWITCH ASSY, HEADLAMP DIMMER | 1 | |
Note:KUN15..XTR..TH;KUN16..DCB..ARL;TGN16..SMT..DLX;KUN16..SCB,SMT,XTR;KUN26..DCB..4FC..GEN;TGN16..RHD..(DCB,SCB);KUN2#,3#..RHD..5F..SR..(GEN,IDN,TH);KUN15,LAN15..RHD..(DCB,SCB,SMT)..(DLX,SR);GGN15,25,KUN2#,35,LAN25,35,TGN10,15..RHD..(DLX,STD) Production:2008-08 – 2012-02 | |||
| 84306-0K021 | CABLE SUB-ASSY, SPIRAL | 1 | |
Note:KUN15..SR..DCR;KUN26..RHD..SR..(ARL,GEN);TGN16,36..4FC..(ANCOM,TH);KUN26,36,TGN36..(SCB,XTR)..SA;KUN15,35,TGN16..DLX..(ARL,PHL);GGN15,25,KUN16,TGN26..(DCB,THDCB,XTR)..SR..(ANCOM,ARL,GEN,TH) Production:2009-12 – 2012-04 Spec:TYPE C:REFER ILLUST. | |||
| — | Part does not apply to this vehicle configuration. | 84312 | — |
| 84652-0K020 | SWITCH ASSY, WINDSHIELD WIPER | 1 | |
Note:KUN25..RHD..(GEN,PKN);KUN15,TGN10,16..RHD..(ARL,GEN,IDN) Production:2008-08 – 2012-02 | |||
| — | Part does not apply to this vehicle configuration. | 84650D | — |
| — | Part does not apply to this vehicle configuration. | 84250A | — |
| — | Part does not apply to this vehicle configuration. | 84247A | — |
| 90159-T0007 | standard | — | |
Replacements:90159-50199 (fitment: unknown) | |||
| 90168-T0004 | standard | — | |
Replacements:90168-40129 (fitment: unknown) | |||
| 90159-50199 | standard | — | |

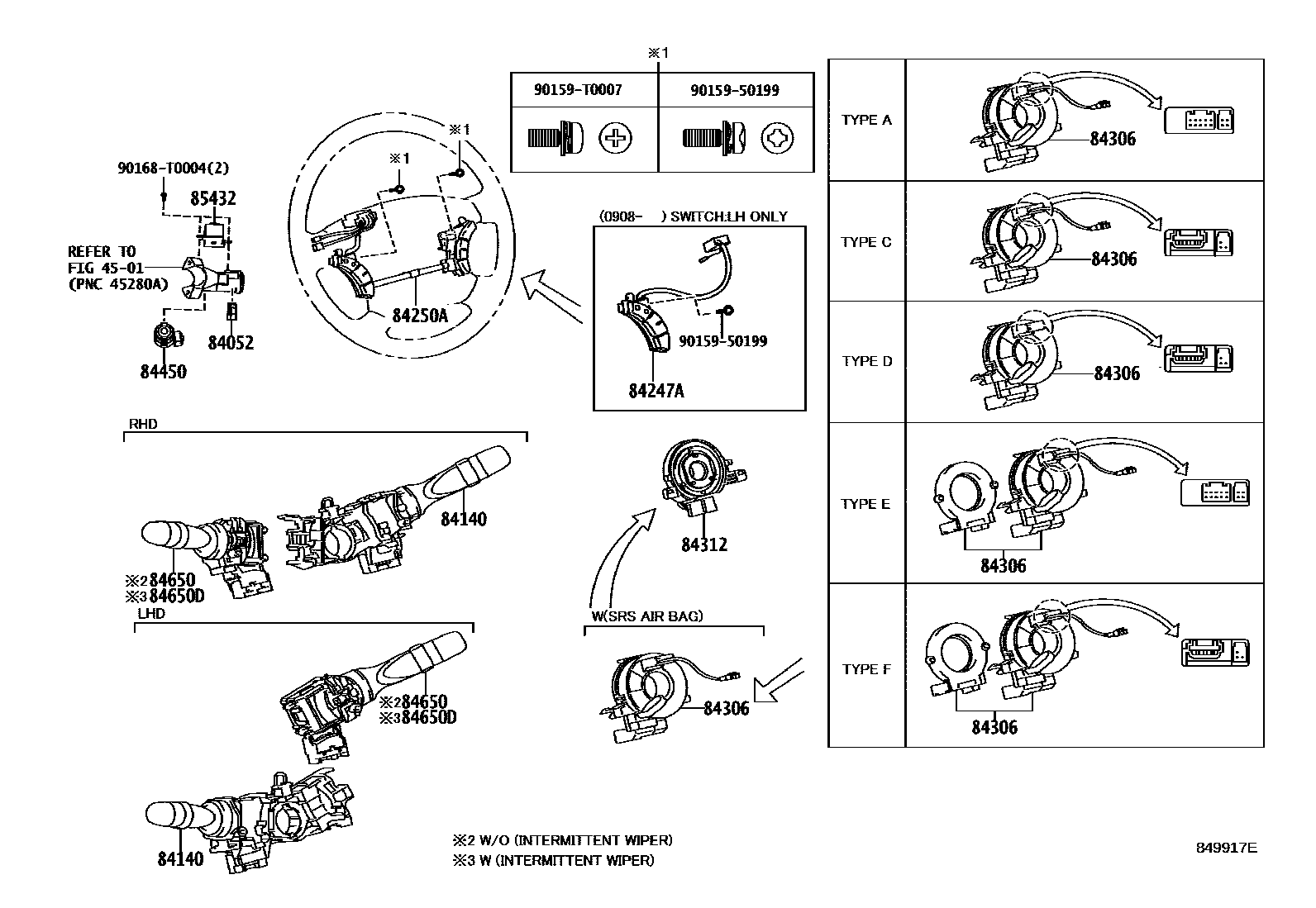

Diagram
9 parts
